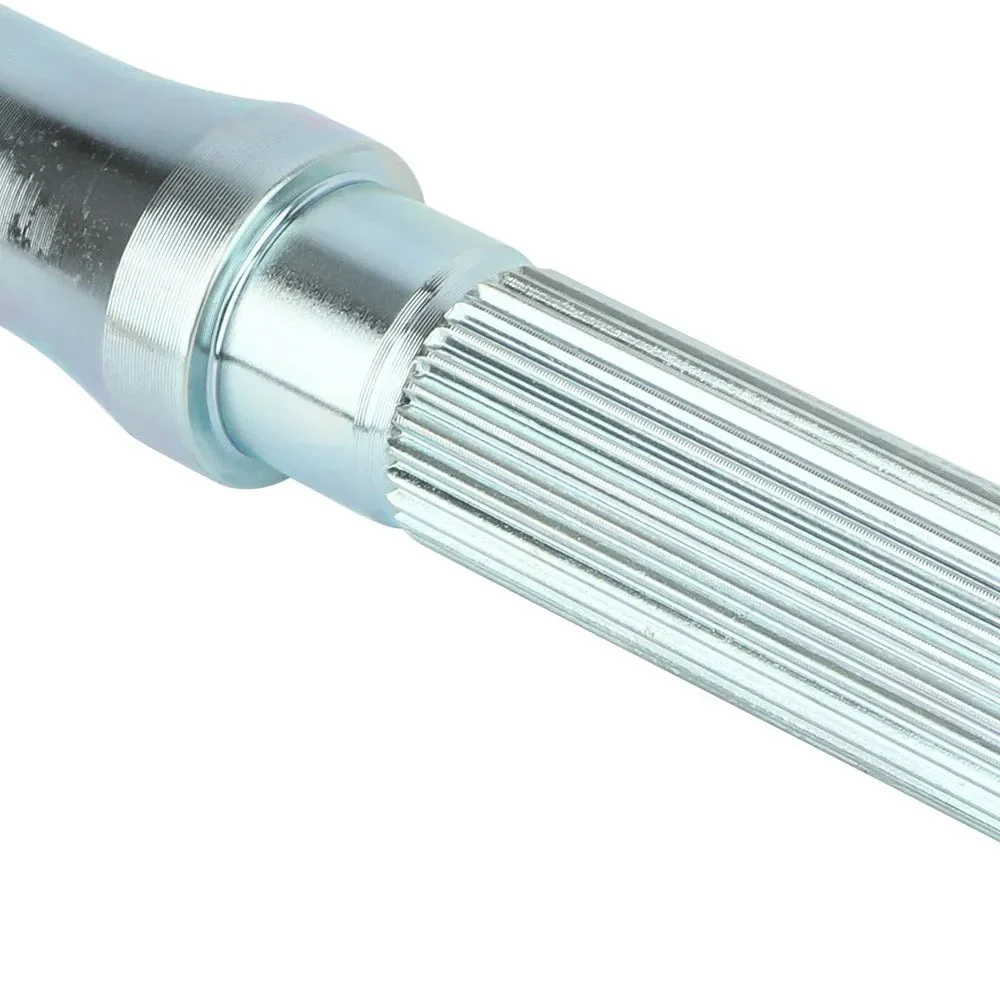

Rear Wheel Axle Shaft & Nuts Kit for Honda Rancher 420 Foreman 500 520 TRX420 TRX500 TRX520 2014-2024Replaces 42311-HR3-A20 42311-HR3-A21
Rear Wheel Axle Shaft & Nuts Kit for Honda Rancher 420 Foreman 500 520 TRX420 TRX500 TRX520 2014-2024Replaces 42311-HR3-A20 42311-HR3-A21
SPECIFICATIONS
Brand Name: M MATI
Origin: Mainland China
Item Weight: 4 KG
For ATV Brand/Model: Honda
Special Features: Rear Axle Shaft & Nuts
MPN:42311-HR3-A20 90304-HM7-A10 94201-40400
Warranty: 1 year
Condition: 100% brand new
Package: Rear Axle Shaft x 1 Axle Nut x 2 Pin x 2
🛠️ Installation Tips
-
Check the Fitment: This axle is designed for Solid Rear Axle (SRA) models. It will NOT fit "IRS" (Independent Rear Suspension) models with CV boots at the differential.
-
Moly Grease is Mandatory: Apply a liberal amount of Molybdenum Disulfide grease to the splines that enter the differential and the hub areas. This prevents the "metal-to-metal" galling that makes future removal impossible.
-
Protect the Seals: When sliding the axle through the differential, be extremely gentle to avoid slicing the inner oil seals. A nicked seal will cause gear oil to leak into your brake drum or onto the trail.
-
Dual Nut Security: This kit includes the necessary nuts. Ensure the inner nut is torqued to spec, and the outer lock nut is tightened against it to prevent backing off under heavy vibration.
-
Clean the Brake Drum: Since the axle passes through the rear brake assembly, clean any old debris or rust from the brake drum housing to ensure the axle seats perfectly flush.
Fit for Honda ATV
Rancher 420 TRX420TE/TM/FA1/FA2/FM1/FM2/FE1 2014-2024 Except IRS TRX420FA5/FA6 Edition
Foreman 500 TRX500FE1/FE2/FM1/FM2 2014-2019 Except Rubicon 500 Edition
Foreman 520 TRX500FE2/FM1/FM2 2020-2024 Except Rubicon 520 Edition
🔍 Troubleshooting Guide
| Issue | Possible Cause | Solution |
| "Clicking" from Rear End | Loose axle nuts or worn splines. | Re-torque the axle nuts. If the noise persists, check if the wheel hub splines are stripped and slipping on the axle. |
| Rear End Vibration | Bent axle shaft. | Often caused by hitting rocks or heavy side-impacts. Jack up the rear and spin the wheels; look for "wobble" in the shaft itself. |
| Oil Leaking onto Axle | Failed differential oil seal. | The axle doesn't hold oil, but it seals the differential. If oil is coating the shaft, replace your differential seals (91255-HR3-A21). |
| Axle Won't Slide In | Debris in diff or burred splines. | Inspect the internal gears of the differential for broken teeth or metal shards. Lightly file any shipping burrs off the axle splines. |
| Hub Moves but Axle Doesn't | Stripped internal splines. | This happens when riding with loose nuts. You must replace both the axle and the wheel hub to prevent the new axle from stripping. |
