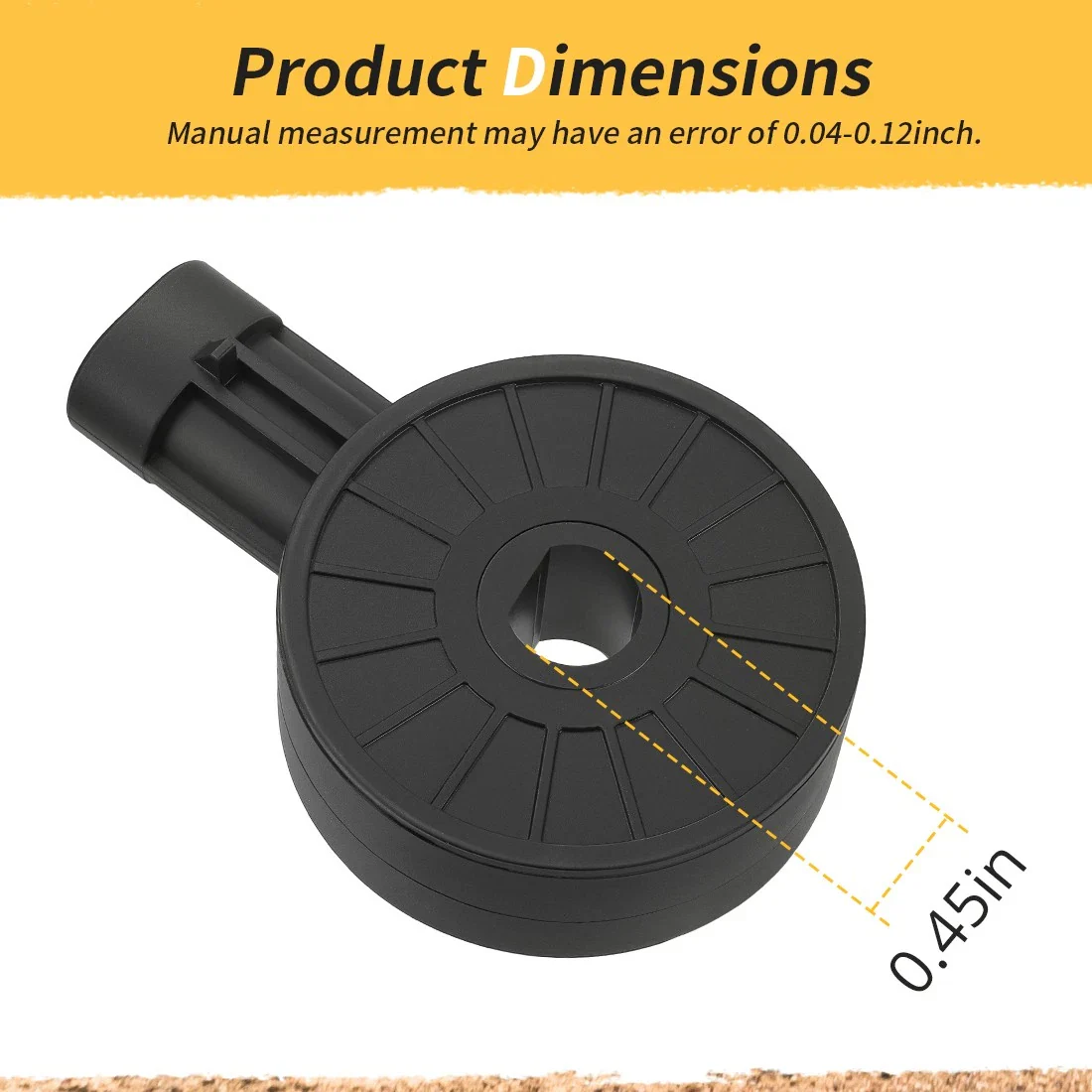

Gear Position Sensor & Pigtail Harness for Polaris Ranger RZR Sportsman ACE 2011-2025 7661999

Brand Name: M MATI

Origin: Mainland China

For ATV Brand/Model: Polaris

Special Features: Gear Position Sensor & Idle Air Control Valve Pigtail Harness Kit

MPN :  7661999

Package :

Gear Position Sensor x1   Idle Air Control Valve Pigtail Harness x1

Warranty : 1 year

Condition:    New

Placement on Vehicle :   Drive Train

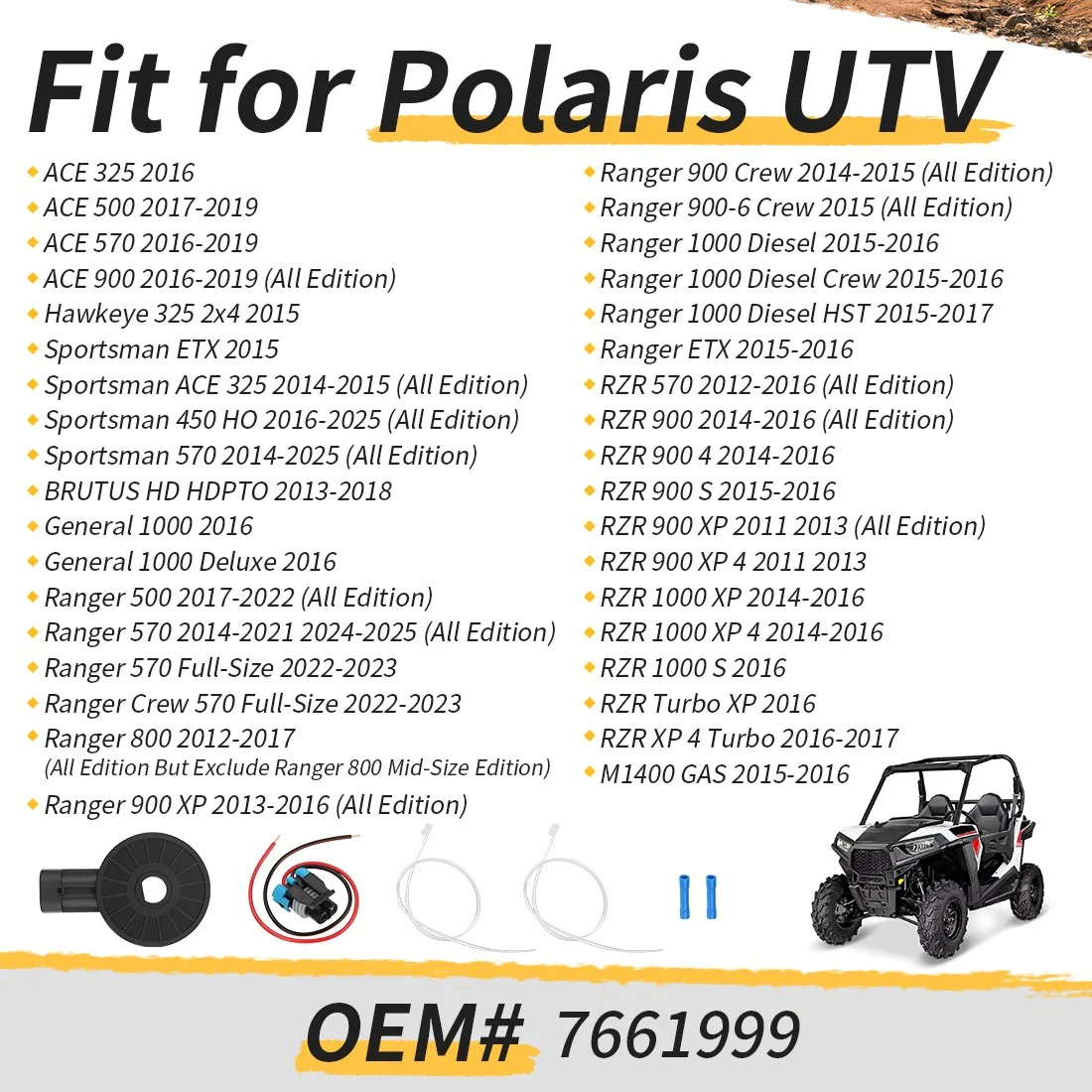

Fit for following  Polaris ATV/UTV

ACE 325 2016
ACE 500 2017-2019
ACE 570 2016-2019
ACE 900 2016-2019 (All Edition)
Hawkeye 325 2x4 2015
Sportsman ETX 2015
Sportsman ACE 325 2014-2015 (All Edition)
Sportsman 450 HO 2016-2025 (All Edition)
Sportsman 570 2014-2025 (All Edition)
BRUTUS HD HDPTO 2013-2018
General 1000 2016
General 1000 Deluxe 2016
Ranger 500 2017-2022 (All Edition)
Ranger 570 2014-2021 2024-2025 (All Edition)
Ranger 570 Full-Size 2022-2023
Ranger Crew 570 Full-Size 2022-2023
Ranger 800 2012-2017 (All Edition But Exclude Ranger 800 Mid-Size Edition)
Ranger 900 XP 2013-2016 (All Edition)
Ranger 900 Crew 2014-2015 (All Edition)
Ranger 900-6 Crew 2015 (All Edition)
Ranger 1000 Diesel 2015-2016
Ranger 1000 Diesel Crew 2015-2016
Ranger 1000 Diesel HST 2015-2017
Ranger ETX 2015-2016
RZR 570 2012-2016 (All Edition)
RZR 900 2014-2016 (All Edition)
RZR 900 4 2014-2016
RZR 900 S 2015-2016
RZR 900 XP 2011 2013 (All Edition)
RZR 900 XP 4 2011 2013
RZR 1000 XP 2014-2016
RZR 1000 XP 4 2014-2016
RZR 1000 S 2016
RZR Turbo XP 2016
RZR XP 4 Turbo 2016-2017
M1400 GAS 2015-2016

🛠️ Installation Tips

Issue	Possible Cause	Solution
Erratic/High Idle	Poor connection at IAC plug.	Check the splices. If the Idle Air Control valve isn't getting a clean signal, the ECU cannot stabilize the idle.
Wrong Gear Displayed	Wiring cross-over or pin loose.	Ensure the wires were spliced to the correct matching positions. A loose pin in the pigtail can cause the cluster to show "N" instead of "R".
Check Engine Light (CEL)	Incomplete circuit/Bad ground.	Clear the codes after installation. If the light returns, use a multimeter to check for continuity between the splice and the plug.
Engine Stalls at Stops	IAC Valve signal interrupted.	Inspect the wiring harness for "tugging" or tension when the engine vibrates. Ensure there is enough slack in the pigtail.
Corrosion at Splice	Improper sealing of wires.	If the repair was not sealed with heat-shrink, moisture will travel up the wire. Re-do the splice with waterproof connectors.
