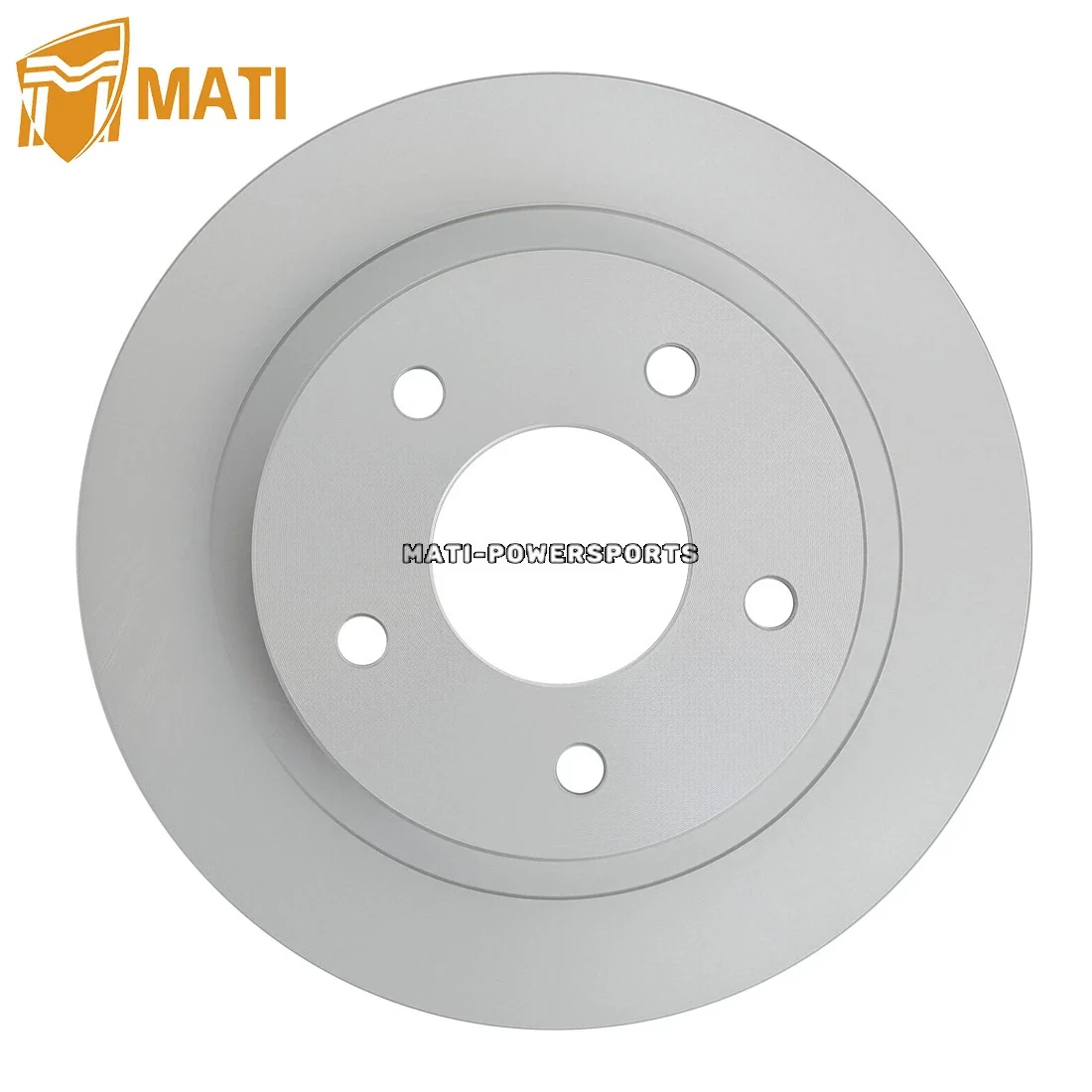

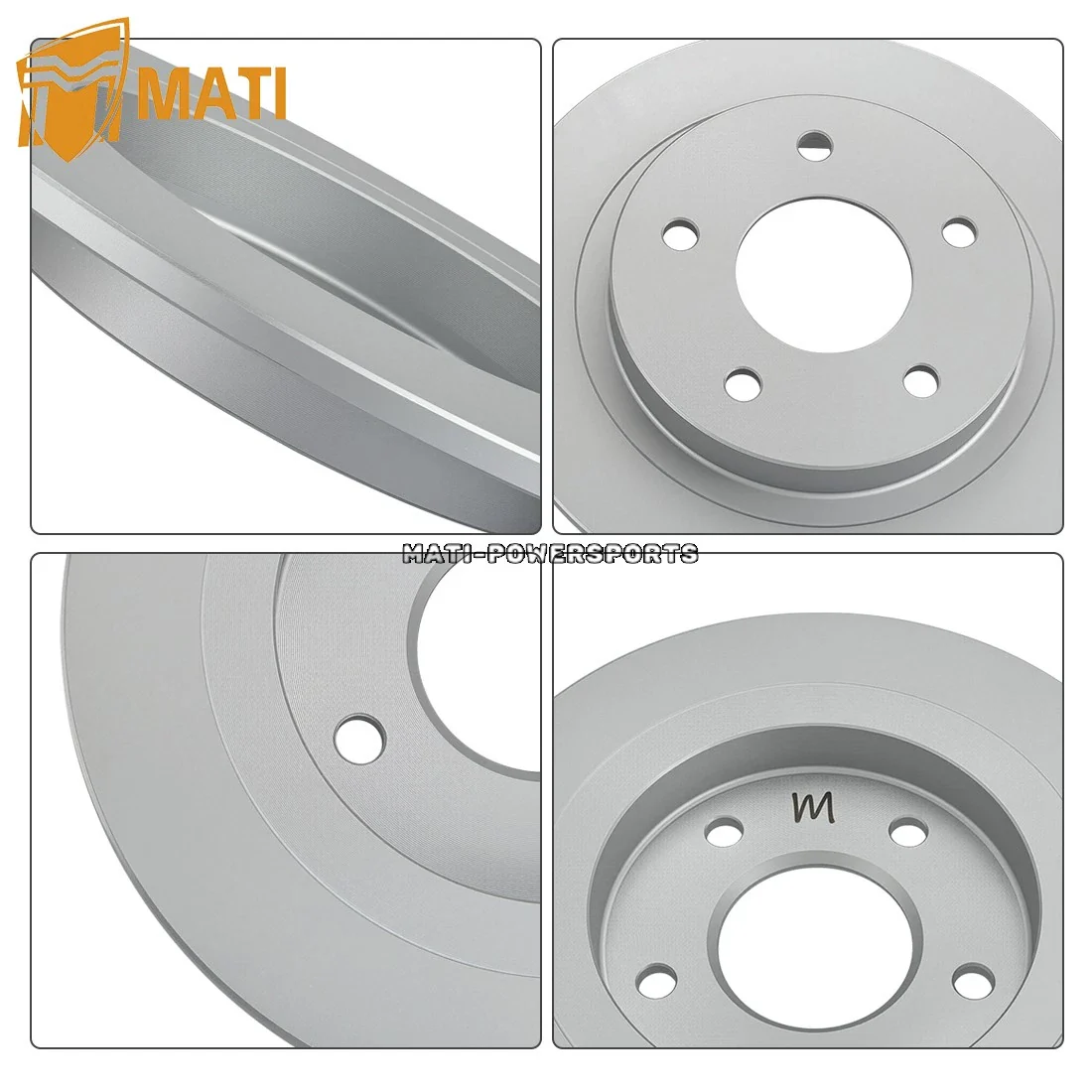

Front or Rear Brake Rotor for Polaris Ranger XD 1500 2024-2025 Extreme Duty Steel Disc Replaces 1914169

Brand Name: M MATI

Origin: Mainland China

For ATV Brand/Model: Polaris

Placement on Vehicle：Front/Rear Brake

Manufacturer Part Number：  1914169

Package ：   Front Rear Brake Rotor x1

Warranty：   1 Year

Condition：   New

Fit for following Polairs  UTV :

Ranger XD 1500 2024-2025 (All Edition)    Use for Front & Rear
RZR Pro R 2023-2025 (Excldue 2023 Ultimate Edition)     Use for Rear
RZR Pro R 4 2023-2025 (All Edition)   Use for Rear
RZR Pro S 4 2025 (All Edition)    Use for Rear
RZR Turbo R 2023-2024 (Exclude 2024 RZR Turbo R Premium Edition)   Use for Rear
RZR Turbo R 4 2023-2024 (All Edition)    Use for Rear
POLARIS XPEDITION ADV 2024-2025 (All Edition) Use for Rear
POLARIS XPEDITION ADV 5 2024-2025 (All Edition) Use for Rear
POLARIS XPEDITION XP 2024-2025 (All Edition) Use for Rear
POLARIS XPEDITION XP5 2024-2025 (All Edition) Use for Rear

🛠️ Installation Tips

• Clean the Hub Interface: Before mounting the new rotor, use a wire brush to clean the wheel hub surface. Even a microscopic layer of rust or grit can cause the rotor to sit slightly unevenly, leading to a "pulsating" brake pedal.

• Degrease the Disc: New rotors are shipped with a thin film of anti-rust oil. You must clean both sides of the rotor thoroughly with a high-quality brake cleaner before installing the pads. If you skip this, the oil will contaminate your new pads, causing them to slip or squeal permanently.

• New Pads are a Must: Never install a new rotor with old, used brake pads. Old pads have wear patterns (grooves) from the old rotor that will prevent them from making 100% contact with the new flat surface, leading to overheating and reduced stopping power.

• Torque to Spec: The Ranger XD 1500 is a heavy machine with high-torque requirements. Use a torque wrench on the rotor mounting bolts (refer to your 2024-2025 service manual for exact specs—typically $30\text{--}45 \text{ lb-ft}$ for XD models) and always use Blue Threadlocker.

• The "Bedding" Process: To ensure maximum rotor life, perform 10–15 slow-speed stops (from $15 \text{ mph}$ to $5 \text{ mph}$) with moderate pressure. This transfers a thin, even layer of pad material to the rotor, which is essential for quiet, powerful braking.

🔍 Troubleshooting Guide

Issue	Possible Cause	Solution
Brake Pedal Pulsation	Improperly torqued bolts or dirt on the hub.	Check the hub mounting surface. If the rotor isn't perfectly flat against the hub, it will "wobble" and push the brake pads back, causing vibration.
Grinding Noise	Metal-on-metal contact.	Ensure the brake pads are installed correctly and that the caliper bracket is not rubbing against the new rotor. Check for rocks trapped in the heat shield.
Squealing When Cold	Glazed rotor surface.	This usually happens if the "bedding" process was skipped. Lightly scuff the rotor with fine-grit sandpaper and clean with brake cleaner to restore the surface.
Reduced Stopping Power	Contaminated pads (Oil/Grease).	If the rotor feels "greasy" or has a dark, shiny glaze, the pads have likely absorbed oil. Replace the pads and clean the rotor again.
Discoloration (Blueing)	Excessive heat / "Riding" the brakes.	If the rotor turns blue or purple, it has overheated. This often happens when descending steep hills with a heavy load without using engine braking.
